Installing a lightning arrester at a site is essential to protect structures and equipment from lightning strikes. Proper installation requires a range of tools & tackles and equipment to ensure safety and effectiveness. A detailed list of tools & tackles and equipment required for the installation of lightning arrester at a site is given below:
1. Lightning Arrester(A External Lightning Protection):
The primary component of the installation is the lightning arrester itself. It comes in various types such as rod-type (Interception Rod) – Metal can be Copper Bonded, Aluminium or GI, ESE Type (Advance Lightning Protection) horn-gap, and metal oxide varistor (MOV) type. The choice depends on the specific requirements of the site.
2. Mounting Hardware(Fitting accessories for Lightning Arrester):
This includes a Mast Base Plate, brackets, clamps, U Bolt, and fasteners required to secure the lightning arrester to the structure. The type and size of mounting hardware will depend on the lightning arrester design and the structure it’s being installed on.
3. Conductor Cable (Down Conductor):
Connect the lightning arrester to the grounding system and the protected equipment using copper, aluminum, or GI conductor cables. Select the size and length of the conductor cable based on the site’s requirements and the arrester’s location.
4. Earthing (Grounding Electrode):
Grounding electrodes like ground rods or plates such as GI Gel Earthing and copper bonded Earthing are essential to establish a low-resistance path for lightning current to dissipate safely into the ground. The number and type of grounding electrodes depend on soil conditions and the site’s size.
5. Grounding Conductors(Interconnection of Earthing):
These are the cables or conductors such as GI or Copper Bonded that Interconnect to the grounding electrode(s). They should be sized appropriately to handle the high currents associated with lightning strikes.
6. Insulators:
“Use insulators to isolate the lightning arrester and conductor cable from the structure on which it’s installed. These insulators prevent electrical conduction between the lightning arrester and the structure, ensuring the safe redirection of lightning’s energy to the ground.”
7. Bonding Equipment:
“Use bonding clamps and connectors to establish proper electrical connections between various components of the lightning protection system, including the lightning arrester, conductor cables, and grounding electrodes.”
8. Hand Tools:
The installation process requires various hand tools, such as wrenches, pliers, screwdrivers, wire straightening machines, drill machines, breakers, hammers, and cable cutters. These tools are necessary for assembling and securing the components of the lightning protection system.
9. Ladders and Scaffolding:
“You may need ladders or scaffolding to safely access the installation site, depending on the height and location of the lightning arrester installation.”
10. Safety Equipment:
Safety gear is crucial to protect installers from electrical hazards and potential falls. This includes personal protective equipment (PPE) such as gloves, helmets, safety glasses, safety belt and fall protection equipment.
11. Testing Equipment:
After installation, use testing equipment like ground resistance meters and surge testers to ensure the lightning protection system functions correctly and provides the necessary protection.”
12. Lightning Risk Assessment Tools:
Tools for lightning risk assessment, such as lightning detection systems and surge protection devices, may be necessary to evaluate the site’s vulnerability to lightning strikes accurately.
13. Lightning Protection System Design Guidelines:
Detailed design plans and guidelines ensure that the lightning arrester is correctly installed and complies with safety standards and regulations.
14. Documentation and Labels:
Proper documentation of the installation process and labeling of components are necessary for maintenance, inspection, and future reference.
15. Fire Extinguishers:
As a safety precaution, fire extinguishers should be readily available at the installation site to handle any fires that may occur during installation or testing.
It’s essential to engage experienced professionals or electrical engineers who are familiar with lightning protection system design and installation to ensure the system’s effectiveness and safety. Additionally, always adhere to local building codes and regulations when installing lightning arresters at a site.

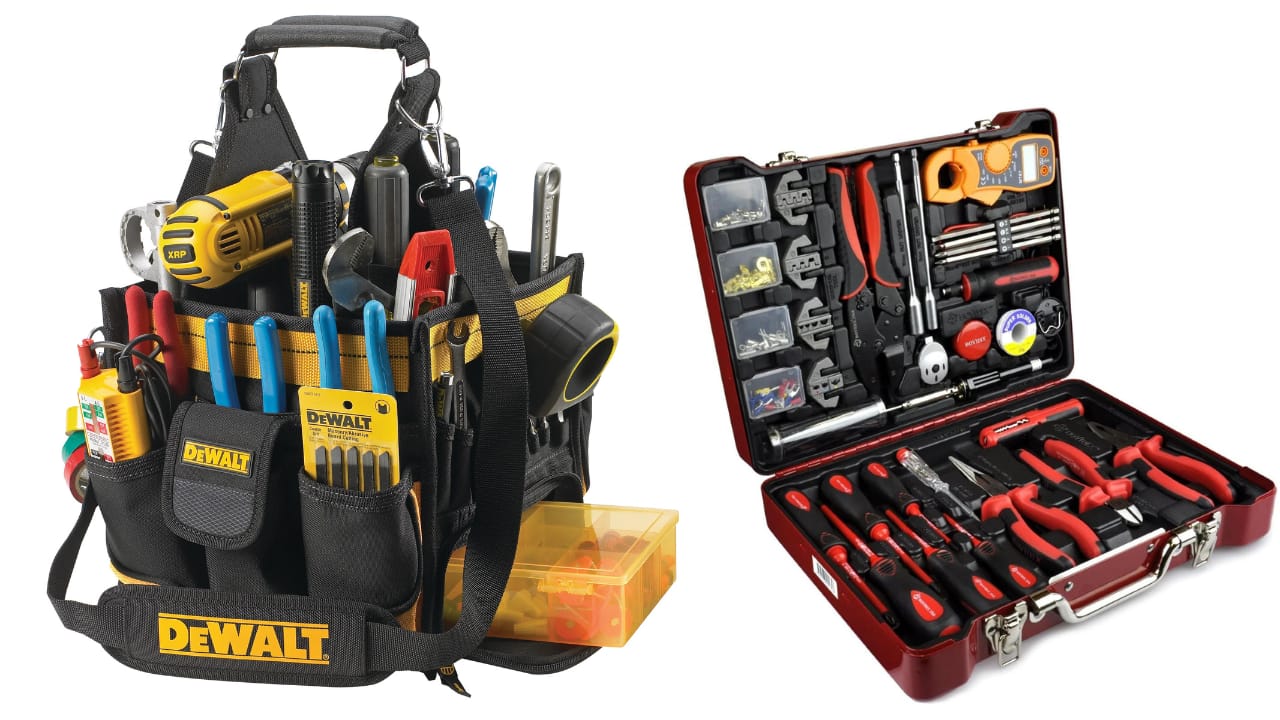

List of common tools & tackles and equipment that you may need during any electrical installation work
When performing electrical work, whether for installation, maintenance, or repair, it’s important to have a set of tools and equipment that ensure both safety and efficiency. Here’s a list of general tools and tackles commonly used in electrical work:
1. Screwdrivers:
Various types and sizes of screwdrivers, including flathead and Phillips-head, are essential for securing screws and terminals.
2. Pliers:
Different types of pliers, such as needle-nose, linemen, and side-cutting pliers, are used for gripping, bending, and cutting wires and cables.
3. Wire Strippers:
Wire strippers are used to remove the insulation from electrical wires and cables.
4. Wire Cutters:
These are designed for cutting wires cleanly and accurately.
5. Crimping Tools:
Crimping tools are used to attach connectors and terminals to wires.
6. Voltage Tester:
A voltage tester or voltage detector is used to check if a circuit is live or dead, ensuring safety during electrical work.
7. Multimeter:
A multimeter measures various electrical parameters, including voltage, current, and resistance. It’s a versatile tool for troubleshooting and testing circuits.
8. Circuit Tester:
This tool helps identify faulty or improperly wired circuits.
9. Electrician’s Knife:
An electrician’s knife, often with an insulated handle, is used for various cutting tasks in electrical work.
10. Electrical Tape:
Insulating and electrical tapes are used to insulate connections and secure wires.
11. Wire Nuts/Wire Connectors:
These are used to join and secure wires together in a safe and reliable manner.
12. Fish Tape:
Fish tape is used for pulling wires through conduits or wall cavities.
13. Conduit Benders:
For bending metal or PVC conduits to the desired shape and angle.
14. Cable Pulling Tools:
These include cable pullers, grips, and lubricants for installing cables in conduits.
15. Voltage and Current Clamp Meters:
Specialized meters for measuring voltage and current without direct contact with live conductors.
16. Insulated Gloves and Safety Gear:
Personal protective equipment (PPE) like insulated gloves, safety glasses, and arc-flash-rated clothing are essential for protecting against electrical hazards.
17. Circuit Breaker Finder:
A device used to locate specific circuit breakers in electrical panels.
18. Knockout Punch Set:
Used for creating holes in electrical boxes and enclosures.
19. Labeling Tools:
Labeling machines or markers for identifying wires and cables.
20. Extension Cords and Power Strips:
These provide convenient power sources when working on electrical installations.
21. Tool Bag or Tool Belt:
A tool bag or tool belt helps keep your tools organized and easily accessible while working.
22. Ladders and Scaffolding:
Depending on the job’s height requirements, you may need ladders or scaffolding for safe access to electrical components.
23. Conduit Reaming Tools:
Used for smoothing the cut edges of conduits to prevent wire damage during installation.
24. Hole Saws:
Electricians use these tools to cut holes in walls or panels for electrical boxes and outlets.
25. Cable Testers and Tone Generators:
Used to test and trace cables for network and communication installations.
26. Insulation Resistance Tester:
Measures the resistance of electrical insulation to ensure its integrity.
27. Cable Strain Relief Tools:
Used to relieve strain on cables and prevent damage at connection points.
28. Non-Contact Voltage Detector:
Detects the presence of voltage without direct contact with wires or conductors.
29. Wire Lubricant:
Facilitates the pulling of wires through conduits by reducing friction.
30. Tool Case or Toolbox:
A sturdy case or toolbox keeps your tools organized and protected during transportation.
Remember that electrical work can be hazardous, so it’s crucial to have the appropriate training and knowledge to use these tools & tackles safely and effectively. Always follow safety guidelines and local electrical codes when performing electrical work.
