Go with a Chemical earthing solution which is a proven method to achieve excellent earthing results. Just, It is important to have the correct knowledge regarding chemical earthing.

If you are looking for the best chemical earthing solution for your application then you landed in the right place. Earthing is one of the important aspects of the Electrical line. If you are using expensive and delicate equipment then Earthing is a must in order to avoid shock or any major hazard. Earthing has its own importance in the electrical segment.

When it comes to spending money on electrical arrangements. most of people generally avoid spending on Earthing and Lightning protection. In that case, you might compromise on quality. Earthing system is also very important and using a good quality product is very important. Loofal Protech solution always meets the customer requirement and at the same time, we also maintain the quality.

What is Chemical Earthing?

Chemical earthing is like a newer version of traditional charcoal-based earthing, but it includes a special chemical. Two main things matter in chemical earthing: first, the metal electrode (like copper or GI) that has to be conductive, and second, the chemical that helps the metal reduce soil resistance. Typically, there are two types of substances used for chemical earthing: bentonite and graphite. They both keep the soil moist, which makes it better at conducting electricity and lowers its resistance.

What are the benefits of using chemical earthing?

The Benefits of Chemical Earthing:

1. Maintenance-Free: Chemical earthing requires minimal upkeep, reducing the need for ongoing maintenance.
2. Effective in Low Water Surfaces: It performs well in areas with limited water availability, making it suitable for a wide range of environments.
3. High Soil Resistance Compatibility: Chemical earthing is effective even in situations where the soil has high resistance, ensuring reliable grounding.
4. Long-Lasting: It forms a durable seal around the electrode, offering prolonged service life.
5. Cost-Efficient: Chemical earthing is a more economical choice compared to traditional earthing systems, as it eliminates the need for ongoing maintenance expenses.

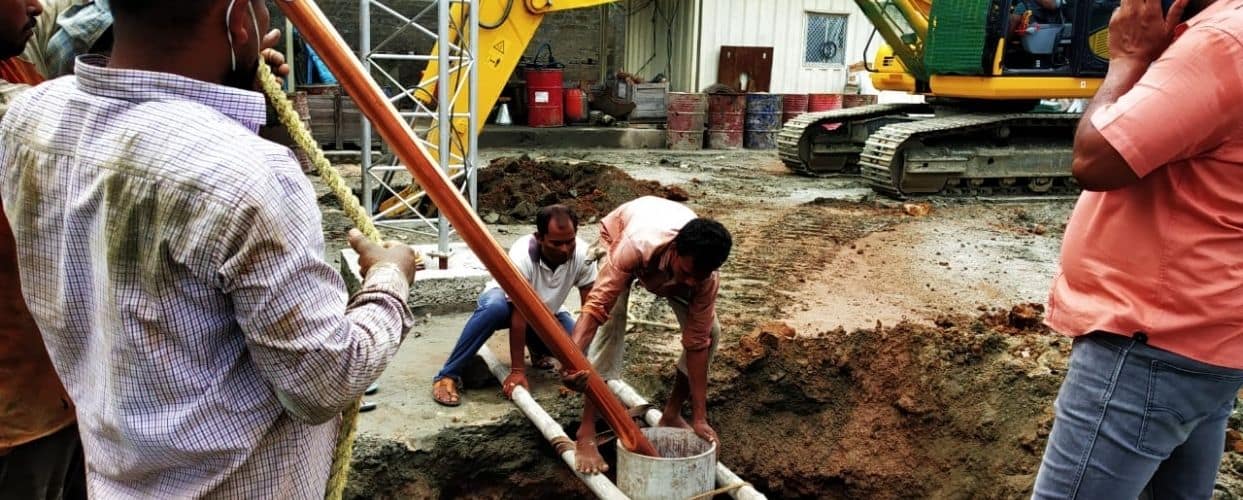

Installation Process for Chemical Earthing Electrodes

To install a chemical earthing system, follow these steps:

1. Dig a hole of the appropriate size to accommodate the earthing electrode.
2. Position the earthing electrode in the center of the pit.
3. Surround the electrode with a backfill compound (BFC) using a pipe.
4. Backfill the pit with soil, ensuring that the electrode is securely in place.
5. After installation, be sure to thoroughly water the area near the earth pit.

Are you Looking for the best quality chemical earthing solution?



 What all the Applications use chemical Earthing for Grounding:

• LT and HT applications – Domestic / Industries
• Telecommunication, Transmission and Distribution systems
• Lightning protection systems
• Prevention of accidents caused by static charge and stray currents
• Substation and Power generated stations
• Equipment earthing / Electrical machines
• Ground fault neutralization
• Lightning arrester, Diesel generators, etc.

Industries Benefiting from Chemical Earthing:

• Petrochemical, LNG, and nuclear facilities
• Data centers, telecom, and broadcasters
• Process control and automation
• Corrections, hospitals, and 911 centers
• Government, military, and defense installations
• T & D operations, substations, and wind turbines

Earthing should meet the following standards:

1. IEC 62305-3protection against lightning part-3 physical damages to the structure and life hazard.
2. EC 60364-5-54:2011- Low-voltage electrical installations – Part 5-54: Selection and erection of electrical equipment – Earthing arrangements and protective conductors
3. EC 62561-7:2018 specifies the requirements and tests for earthing-enhancing compounds producing low resistance of an earth termination system.
4. IS 30343: 1987 Code of practice for earthing
5. NEC SP30: 200 National Electrical code by BIS
6. UL 467 Grounding and bonding equipment.

If you want the installation of earthing in your buildings, it would be best to consult earthing experts who can easily help you with the best solution.

Where will you get the best chemical earthing solution in India?

If you are looking for earthing installation service in Jamshedpur or Jharkhand even in other parts of India, we will help you with the best solution. You will find people nowadays using chemical earthing. Earlier charcoal and salt-based earthing were popular and it is still good but because of regular maintenance, people avoid charcoal-based earthing these days. Nowadays, maintenance-free chemical earthing is popular these days.

Where do you find all types of chemical earthing?

Loofal Protech Solution: Comprehensive Earthing Solutions in Jamshedpur, Jharkhand, and Across India

Loofal Protech Solution offers a wide array of earthing solutions in Jamshedpur, Jharkhand, as well as throughout India. Our offerings include GI earthing, Gel Earthing, GI pipe-in-pipe, pipe-in-strip earthing, Copper bonded chemical earthing, and more. We specialize in the installation of Mineral chemical earthing, which is environmentally friendly and exceptionally effective in preserving soil integrity and long-term earth resistance. Our products are renowned for their exceptional durability.

Electrical earthing, also known as grounding, involves the direct dissipation of electrical energy into the Earth through low-resistance wiring. This process connects the non-current-carrying components of electrical or electronic equipment, or the neutral of the supply system, to the ground.”

What is the objective of using the earthing system in an electrical line?

According to the requirements of an electrical installation, earthing solutions for an electrical system are utilized for protective and functional objectives. The earthing arrangement’s objective is to give a link to the earth. It can be protected from being shocked by an open circuit by earthing it.

What is the standard of Maintenance-free copper-bonded chemical Earthing?

The standard of Maintenance-free Copper bonded chemical Earthing should be Copper bonded low carbon solid steel rod which can reduce corrosion. It should be at least 250 microns copper bonding electrode. As per the standard  IS 3043, IEC 60364-5-54, IEC 62561-2 your earthing system should be  tested to make sure for the better performance

Exothermic welding can be done.

We also have a Cost-effective solution that can minimize the pricing.

The type of solution offered is being used throughout the world.

Our mineral compound can enhance the earth’s conductivity.

The earth compound protects the earth rod from corrosion which ensures its durability and efficiency as compared to other arrangements.

The earthing resistance value can be calculated based on the type of equipment or the capacity of the equipment.

1. Major Power station – 0.5Ω
2. Minor substation – 2 Ω
3. Major substation – 1 Ω
4. Neutral – 2 Ω
5. Grounding – 5 Ω
6. Service connection – 4 Ω
7. Towers – 30-40 Ω
8. Medium Voltage network – 2 Ω
9. L.T Lightning Arrester – 5 Ω
10. LT Line – 5 Ω
11. HT Line – 10 Ω



Earthing Solutions we provide:

We specialize in the design of various types of earthing systems, including GI earthing, Pipe in Pipe, pipe in the strip, and copper-bonded chemical earthing. Additionally, we offer tailored earthing solutions to meet our clients’ specific requirements. Please share your needs with us, and we will customize the earthing system accordingly.

We are the Manufacturer dealer, distributor, wholesaler, and Supplier of chemical earthing in Jharkhand, Chhattisgarh, Odisha -Bhubaneshwar, Balasore, Jajpur, Cuttak, Baripada,  Uttar Pradesh, and West Bengal -Kolkata.

We also do Supply and installation of earthing in almost all parts of India



General Technical Specification of Chemical Earthing:

1. Diameter: 17.2 mm, 40 mm, 50 mm, 80 mm
2. Length of Rod: 1000 mm, 2000 mm, 3000 mm
3. Material: Galvanized Iron (GI), Zinc, Copper
4. Size of Conductor: 1000 mm, 2000 mm, 3000 mm Make Remedies And others
5. Colour: SILVER, COPPER
6. Equipment Type: Copper Bonded Grounding Rod, Earthing Pit Cover, Earth Bar, Earthing Plate Clamp, Earthing Electrode Pipe
7. Rod Diameter: 50 MM
8. Connector Size: 3000 MM
9. Condition: New
10. Application: INDUSTRIES, RESIDENTIAL, HOSPITAL, MES, AIR FORCE,
11. Coating Thickness (Microns): 80 TO 254 MICRON
12. Diameter (mm): 17.2 mm, 40 mm, 50 mm, 80 mm
13. Packaging: BUBBLE ROPE
14. Rod Diameter (mm): 17.2 MM, 19 MM, 14.2 MM,
15. Terminal Size (mm): 100 MM X 6 MM
16. Terminal Hole (mm): 16 mm
17. Model Number: RESPL
18. Tolerance (%): 2
19. Weight Of Pipe (kg): 18 kg
20. Service Life: 25 -30 years
21. Certification: ISO, CPRI, ROHS,
22. Coating Thickness (micron): 80 TO 254 MICRON

Chemical Earthing Installation Guide- An effective earthing solution for residential, commercial, and industrial as per the standard

Chemical Earthing Installation Video

Earth-pit Cover for earthing

We offer solutions for all earthing system-related challenges. In cases where limited space or incompatibility with RCC work poses issues and creating an earthing chamber is difficult, the Earth Pit Cover proves to be a valuable solution. This reliable and easy-to-install cover effectively addresses such space constraints and positioning challenges.

In Jharkhand, we are the supplier, dealer, and contractor of chemical earthing in all the cities:

Garhwa, Palamu, Latehar, Chatra, Hazaribagh, Koderma, Giridih, Ramgarh, Bokaro, Dhanbad district, Lohardaga, Gumla, Simdega, Ranchi, Khunti, West Singhbhum, Saraikela Kharsawan, East Singhbhum, Jamtara, Deoghar, Dumka, Pakur, Godda, Sahebganj.

If you are looking for Any type of electrical chemical earthing system in Jamshedpur Jharkhand please tell us. Get the best compatible earthing solution in the electrical earthing system. We are a dealer, wholesaler, distributor, and supplier of maintenance-free chemical earthing in Jamshedpur Jharkhand. Let’s get all the complete solutions in earthing and lightning protection. We are a team of engineers and provide all types of electrical solutions in Jamshedpur Jharkhand. On top of that, we also design and install Lightning Arrester. We have a conventional LA and ESE Lightning Arrester for high rise buildings.



Let us know your requirements, we will suggest to you the best earthing solution, which can be durable and affordable.

---
