Maximizing Efficiency: Unraveling the Benefits of Cable Tray Management for Industrial Users
When discussing industrial electrical cabling, the significance of cable trays becomes evident. A specific arrangement must be implemented for larger cables to prevent entanglement, ensuring easy comprehension during maintenance and proper upkeep. Effectively managing cable trays plays a crucial role in maintaining a tidy overall cabling arrangement.
In the dynamic landscape of industrial facilities, effective cable management is a cornerstone for ensuring seamless operations, safety, and maintenance. One indispensable aspect of this management system is the strategic utilization of cable trays. In this comprehensive guide, we delve into the world of cable tray management for industrial users, shedding light on its types, importance, and the distinct purposes they serve.
Understanding Cable Tray Management:
Cable tray management involves the organized installation and maintenance of cable trays, specialized components designed to support and route electrical cables throughout industrial spaces. This practice plays a pivotal role in streamlining operations, enhancing safety, and facilitating easier maintenance procedures.
Types of Cable Trays:

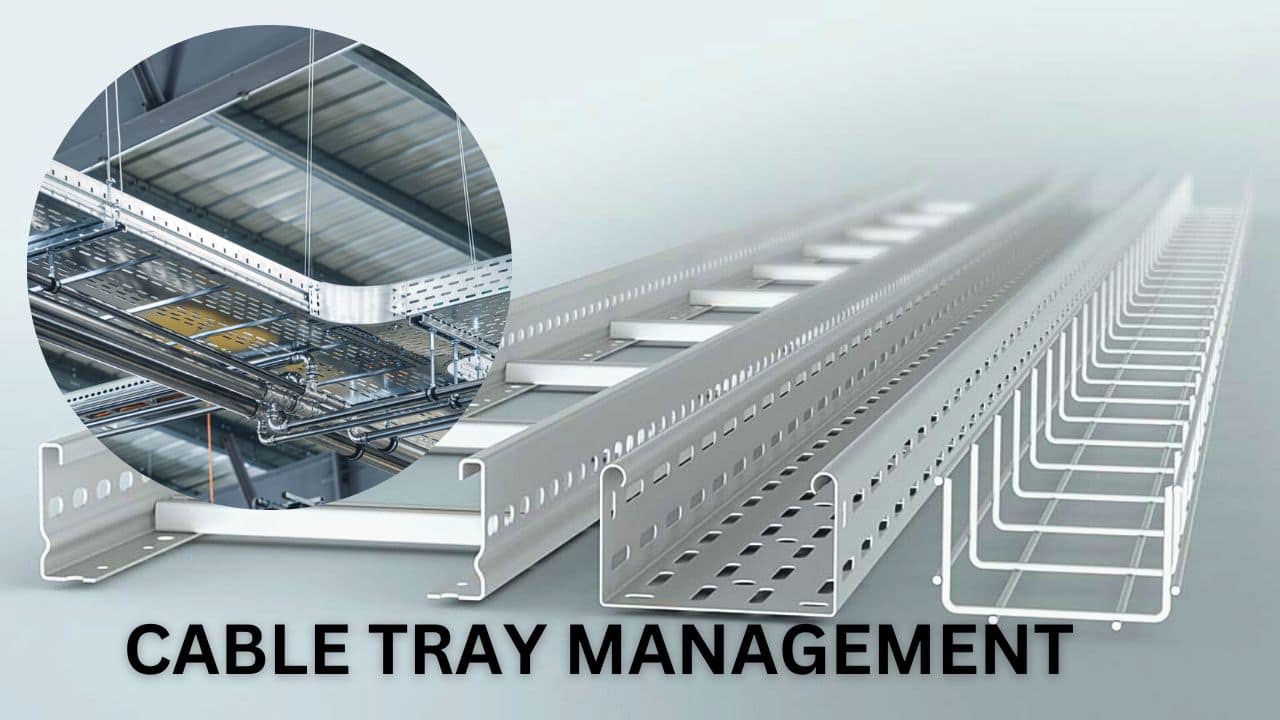

1. Ladder Cable Trays:
Ladder cable trays are characterized by their sturdy design with two longitudinal side rails connected by individual transverse rungs. This robust structure makes them ideal for heavy-duty applications, supporting large bundles of cables. Their open design allows for effective heat dissipation, making them suitable for areas where temperature control is crucial.
2. Perforated Cable Trays:
Known for their perforated side walls, these trays provide a balance between strength and ventilation. The perforations offer efficient heat dissipation while maintaining cable organization. They are often chosen for applications where a combination of cable support and proper air circulation is essential.
3. Wire Mesh Cable Trays:
Wire mesh cable trays feature a grid-like structure that provides excellent ventilation and visibility of cables. These trays are lightweight yet durable, making them a preferred choice for applications where easy cable identification and quick access are vital. The open design also facilitates effortless installation and maintenance.
4. Solid Bottom Cable Trays:
Solid bottom cable trays are designed with a solid, enclosed structure, providing a secure environment for sensitive cables. This type is commonly used in areas where protection against dust, moisture, and other environmental factors is crucial. Solid bottom trays are ideal for applications that require additional cable shielding.
Importance of Cable Tray Management:
1. Prevention of Cable Entanglement:
Cable trays, by design, prevent cables from becoming entangled with each other. This is particularly crucial in industrial settings where numerous cables of varying sizes and functions are deployed. Proper cable organization reduces the risk of malfunctions and facilitates easier troubleshooting.
2. Facilitating Maintenance:
Cable tray management simplifies maintenance procedures by providing clear pathways for cable inspection and repair. This not only reduces downtime but also ensures that technicians can identify and address issues swiftly, minimizing the impact on overall operations.
3. Enhanced Safety:
Well-managed cable trays contribute to a safer working environment by reducing the risk of electrical hazards. Properly supported and organized cables mitigate the chances of accidental damage, short circuits, and other potential dangers.
Purpose of Using Each Type of Cable Tray
Most small businesses or factories do not know the purpose of using cable trays. The purpose of a cable tray is to ensure that if you are laying cables of a particularly large size then cable trays should be used to ensure that you do not entangle the cables and during maintenance, it will make it easier for you to work.
1. Ladder Cable Trays:
Ideal for heavy-duty applications, ladder cable trays provide robust support for large cable bundles. Their open design allows for efficient heat dissipation, making them suitable for high-temperature environments.
2. Perforated Cable Trays:
Balancing strength with ventilation, perforated cable trays are chosen for applications where cable support and effective air circulation are both critical. The perforations aid in heat dissipation, preventing cables from overheating.
3. Wire Mesh Cable Trays:
Wire mesh cable trays are lightweight and offer excellent visibility of cables. They are well-suited for applications where quick identification and access to cables are essential, making them particularly useful in industries with frequent modifications to the cabling infrastructure.
4. Solid Bottom Cable Trays:
Designed for enhanced protection, solid bottom cable trays create a secure environment for sensitive cables. They are commonly employed in areas where shielding against environmental factors such as dust and moisture is paramount.
Navigating the Cost of Cable Trays: A Comprehensive Guide for Industrial Investments
In the realm of industrial infrastructure, understanding the cost dynamics of cable trays is essential for making informed decisions that balance efficiency, durability, and budgetary constraints. Cable trays, serving as a critical component of cable management systems, come in various materials, types, and sizes, each with its own cost implications. In this guide, we break down the factors influencing the cost of cable trays and provide insights to help industrial users optimize their investments.
Factors Influencing the Cost of Cable Trays:
1. Material Composition:
Cable trays are manufactured from a range of materials, each with its unique set of characteristics and associated costs. Stainless steel, aluminium, and steel are standard materials. Steel cable trays are often more affordable but may be susceptible to corrosion in certain environments, while stainless steel offers enhanced corrosion resistance at a higher price point.
2. Type of Cable Tray:
The type of cable tray selected significantly influences its cost. Ladder cable trays, with their robust design, may be more expensive than simpler wire mesh trays due to the increased material and manufacturing complexity. Understanding the specific needs of your industrial application is crucial in determining the appropriate type of cable tray that balances functionality with cost-effectiveness.
3. Finish and Coating:
The finish and coating applied to cable trays impact both their longevity and cost. Galvanized finishes provide corrosion resistance, but may add to the overall expense. In contrast, a basic painted finish may be more budget-friendly but may require additional maintenance in harsher environments.
4. Size and Load Capacity:
Larger cable trays designed to support heavier cable loads generally come with higher costs. Understanding the specific load requirements of your industrial application is crucial in selecting the appropriate size and load capacity to avoid over-engineering and unnecessary expenses.
5. Installation Complexity:
The complexity of the installation process can influence the overall cost of cable tray implementation. Factors such as the layout of the industrial facility, the need for additional support structures, and the presence of obstacles may contribute to increased labor costs. Choosing cable trays that align with the ease of installation can help mitigate these expenses.
Cost-Benefit Analysis:
While the cost of cable trays is a significant consideration, it is essential to view it within the broader context of long-term benefits. Investing in high-quality cable trays that meet the specific demands of the industrial environment can result in:
1. Reduced Maintenance Costs:
High-quality materials and finishes can contribute to the longevity of cable trays, reducing the need for frequent maintenance and replacement.
2. Enhanced Safety and Reliability:
Investing in robust cable trays ensures the safety and reliability of the electrical infrastructure, minimizing the risk of accidents, disruptions, and downtime.
3. Compliance with Standards:
Choosing cable trays that meet industry standards ensures compliance with regulations, avoiding potential fines and legal issues.
Use of Cable Tray for Industrial Purposes
Enhance your industrial wiring setup by incorporating cable trays, essential for efficient cable management. These trays offer a structured pathway for cables, preventing entanglement and ensuring a neat arrangement. In industrial settings, where heavy-duty cables are commonplace, cable trays provide crucial support, preventing sagging and potential damage. The perforated design allows for optimal ventilation, minimizing heat buildup and safeguarding the integrity of your cables. Simplify maintenance tasks with easy access to cables, promoting a swift and hassle-free inspection process. Elevate the reliability and longevity of your industrial electrical infrastructure by embracing the technical prowess of cable trays – a fundamental solution for seamless cable organization in demanding environments.
Navigating the Network: Exploring Types of Cables Used in Cable Trays
Cable trays are indispensable in providing a structured and organized pathway for various types of cables in industrial and commercial settings. The choice of cables within these trays is crucial, as different applications demand different characteristics. In this guide, we’ll delve into the diverse types of cables commonly used in cable trays, each tailored to meet specific performance requirements and environmental conditions.
1. Power Cables:
Power cables form the backbone of electrical distribution systems, transmitting high-voltage electricity from one point to another. To ensure safe and efficient power transmission within cable trays, these cables often have insulation and shielding. Power cables come in various types, including armored cables for added protection in demanding environments.
2. Control Cables:
Control cables transmit signals to control machine and equipment functions. Automation systems and manufacturing processes commonly employ these cables. They organize control cables within cable trays to prevent interference and ensure reliable signal transmission.
3. Data and Communication Cables:
In the digital age, the demand for data and communication cables has surged. Category 5e, Category 6, and fiber optic cables are frequently installed in cable trays to support data transmission and networking requirements. These cables are organized within the trays to prevent signal degradation and ensure high-speed data transfer.
4. Instrumentation Cables:
Instrumentation cables play a vital role in connecting sensors, transmitters, and other measurement devices to control systems. Industries often use these cables in processes where precision and accuracy are paramount. Proper organization within cable trays is essential to prevent signal interference and maintain reliable instrument communication.
5. Coaxial Cables:
Coaxial cables find their place in cable trays where applications demand the transmission of high-frequency signals, such as in television broadcasting or data networks. The design of coaxial cables, with a central conductor surrounded by insulating layers, makes them suitable for minimizing signal loss and interference when properly organized in cable trays.
6. Fire Resistant Cables:
In environments prioritizing fire safety, organizations employ fire-resistant cables to sustain communication and power supply amid flames. They strategically install these cables in cable trays to bolster the facility’s overall fire safety measures.
7. Thermocouple Cables:
Thermocouple cables are designed to connect temperature sensors to control systems. In industrial processes where temperature monitoring is critical, these cables play a crucial role. When routed through cable trays, thermocouple cables are organized to prevent cross-talk and ensure accurate temperature readings.
8. Tray Cables (TC):
Specifically designed for use in cable trays, tray cables (TC) are a versatile solution that combines power and control conductors in a single cable. Well-suited for cable tray applications, these cables offer a compact and organized solution for various industrial and commercial environments.
Conclusion:
Understanding the diverse types of cables used in cable trays is pivotal for creating a well-organized and efficient cable management system. From power distribution to data transmission and instrumentation, each cable type serves a unique purpose within the intricate web of industrial connectivity. By carefully selecting and organizing these cables within cable trays, businesses can ensure reliable operations, reduce maintenance challenges, and adapt to the evolving demands of modern industries.
