Why should you buy pipe earthing instead of rod or plate earthing may be on your mind. Is installing pipe earthing a wise decision? You might find yourself wondering these kinds of things. Of all the alternatives, pipe earthing has proven to be one of the most successful ways to ground electrical installations. In this post, we’ll examine the benefits of purchasing pipe earthing for your electrical applications and the reasons it’s a wise investment in your infrastructure.
What is pipe earthing for electrical applications?
Pipe Earthing: The term “pipe earthing” refers to the electrode composed of pipes. Any metal and any form can be used to create the electrode. Pipe earthing is the term for the metal that is shaped like a pipe. Pipe earthing is the process of appropriately putting electrodes in combination with chemicals, salt, or coal. It is used to follow a low resistance path or to ground electrical applications.
Does buying a pipe earthing work well?
Any earthing system’s efficiency is primarily dependent on the soil around its electrodes. There is a common misconception that higher-quality earthing will produce better outcomes. This is somewhat accurate, however even the best earthing won’t produce very good results if the soil resistivity is high. Talking about pipe earthing, it is obviously beneficial because it may be a marginally superior option given the increased diameter of the pipe. The pipe creates a strong connection with the earth because of its wide circumference, which enables it to provide a higher resistance value. If you wish to buy pipe earthing, it’s important to familiarize yourself with the available types for commercial use.
Type of Pipe earthing that you can buy
The market offers three different types of pipe earthing: Chemical Gel Earthing, which uses two different types of technology. Pipe in Strip Earthing Technology and Pipe in Pipe Earthing Technology, and Simple Hollow Pipe Earthing. This type of pipe earthing is mostly used for electrical appliances. The metal of pipe earthing can be of any type such as GI, copper or others.
1. Pipe in Strip earthing

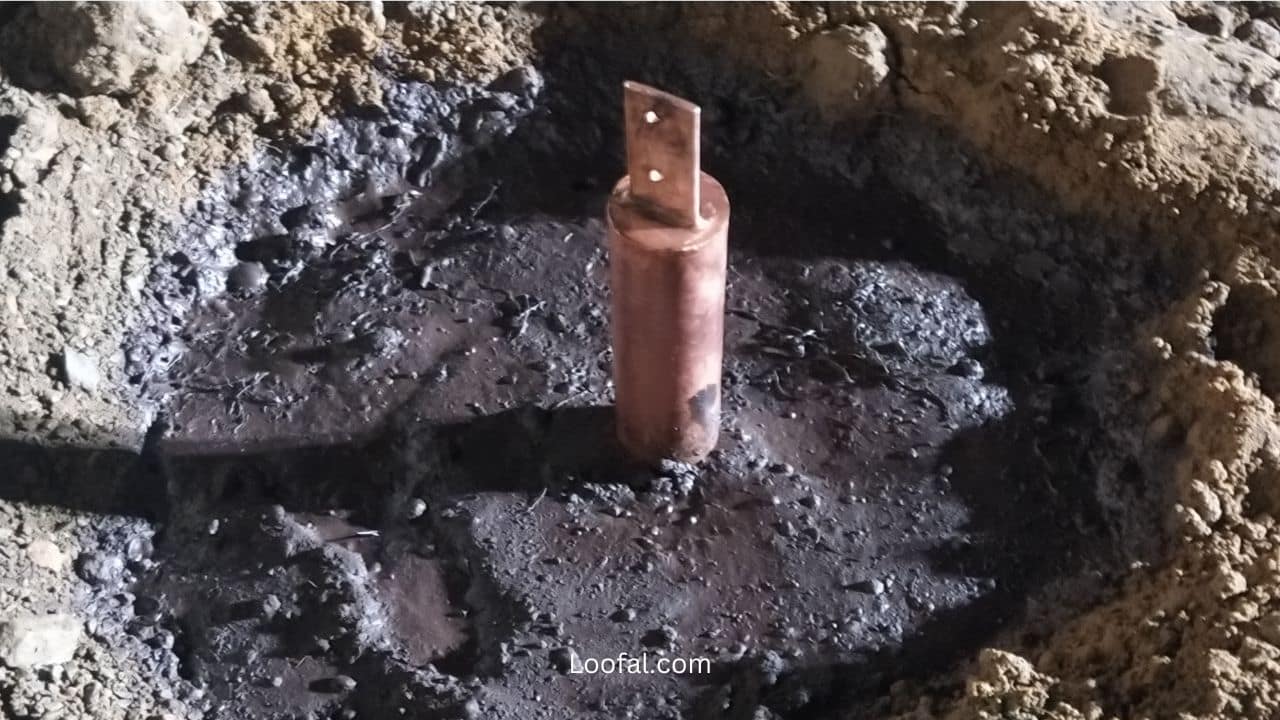

Pipe in strip earthing is simply a strip inserted inside a pipe and welded at both the ends and a terminal with 4 holes is made at the top, after earthing installation, the terminals are on the outer surface of the soil through which the electrical application is connected. The process of transmitting current from electrical equipment to ground via a low-resistance metal strip with pipe is known as pipe in strip earthing. The strip size can vary depending on the diameter of the pipe and is typically available in two dimensions: 25×3 or 50×6.
2. Pipe in pipe earthing
Pipe in pipe aerating is similar to pipe in strip earthing, only in this instead of the strip, the pipe itself is welded inside the pipe and it is also quite effective. Chemicals are also added inside the electrodes of this type of earthing so that it can give better resistance value. Better earthing is taken into consideration when there is less resistance. But as I also said before, the soil has a greater influence on the resistance rating than the level of earthing.
3. Simple Hollow Pipe Earthing
Simple hollow pipe earthing is nothing but a hollow pipe which is hollow at both the ends. Small holes are made in the pipe so that water can be poured into it from time to time so that it remains moist. In this type of earthing the metal is mostly GI. The electrode of this type of earthing is GI and its resistance is maintained by chemical or salt coal.
Copper and GI Earthing
Copper and GI earthing both work well for pipe earthing. GI earthing is more economical than copper earthing. However, if seen, it is as per your requirement. The performance of both the electrodes is almost the same although sometimes copper earthing is a little more reliable when it comes to resistance value. If the electrodes are installed correctly you will easily get 1 to 2 ohms in both cases.
Advantages of buying pipe earthing and its benefits
1. Enhanced Electrical Safety:
Pipe earthing is renowned for its exceptional electrical safety benefits. It ensures the immediate dissipation of excess electrical charges, preventing shocks, electrical fires, and other hazards. When you buy pipe earthing, you’re investing in a system that helps protect both people and property.
2. Corrosion Resistance:
Pipe earthing systems are typically made from high-quality, corrosion-resistant materials, such as galvanized steel or copper. This makes them suitable for installation in various environments, including those with high moisture levels or corrosive substances. The longevity of pipe earthing ensures consistent and reliable performance.
3. Low Maintenance:
Once installed, pipe earthing systems require minimal maintenance. Unlike some other grounding methods, they are less prone to wear and tear, reducing the need for frequent upkeep. Because of this, they end up being a more affordable option.
4. Excellent Conductivity:
Pipe earthing offers superior conductivity due to the extensive contact area with the surrounding soil. This means that it efficiently disperses electrical currents into the ground, preventing any potential buildup of charge that could cause damage to your electrical system.
5. Consistent Grounding:
Pipe earthing maintains a stable connection to the Earth’s potential, ensuring a consistent and reliable grounding solution for your electrical applications. This consistency is crucial for maintaining system integrity and preventing electrical disturbances.
6. Compliance with Standards:
Many electrical codes and standards recommend or require the use of pipe earthing for specific applications. By buying pipe earthing, you ensure compliance with these regulations, reducing the risk of non-compliance issues in the future.
7. Flexibility and Scalability:
Pipe earthing systems can be customized to suit the specific needs of your electrical application. They are also scalable, making them a versatile choice for projects of varying sizes and complexities.
8. Environmental Friendliness:
Pipe earthing is an eco-friendly grounding solution as it minimizes the impact on the environment. The use of durable materials and minimal maintenance requirements contribute to a sustainable choice for electrical grounding.
Conclusion of Pipe Earthing
when considering your options for electrical grounding, buying pipe earthing is a smart choice. Its outstanding safety features, resistance to corrosion, and long-term cost-effectiveness make it a valuable investment in your electrical infrastructure. Furthermore, its compliance with industry standards and eco-friendly attributes make it a responsible and sustainable choice. By opting for pipe earthing, you are ensuring the safety, efficiency, and reliability of your electrical systems, which are essential for both residential and commercial applications.
Comprehensive Pipe Earthing Solutions Available for Purchase
Loofal Protech Solution, a specialized company in earthing and lightning solutions, offers a comprehensive suite of services. Our expertise extends beyond earthing to include solutions for lightning-related concerns. We provide a wide variety of Pipe Earthing options, including copper and GI variants, enabling you to select the one that best fits your requirements. Furthermore, we excel in tailoring customized Pipe Earthing solutions designed specifically for our industrial clients. For inquiries or assistance, please feel free to contact us at 9304532758 or 6202627265.
